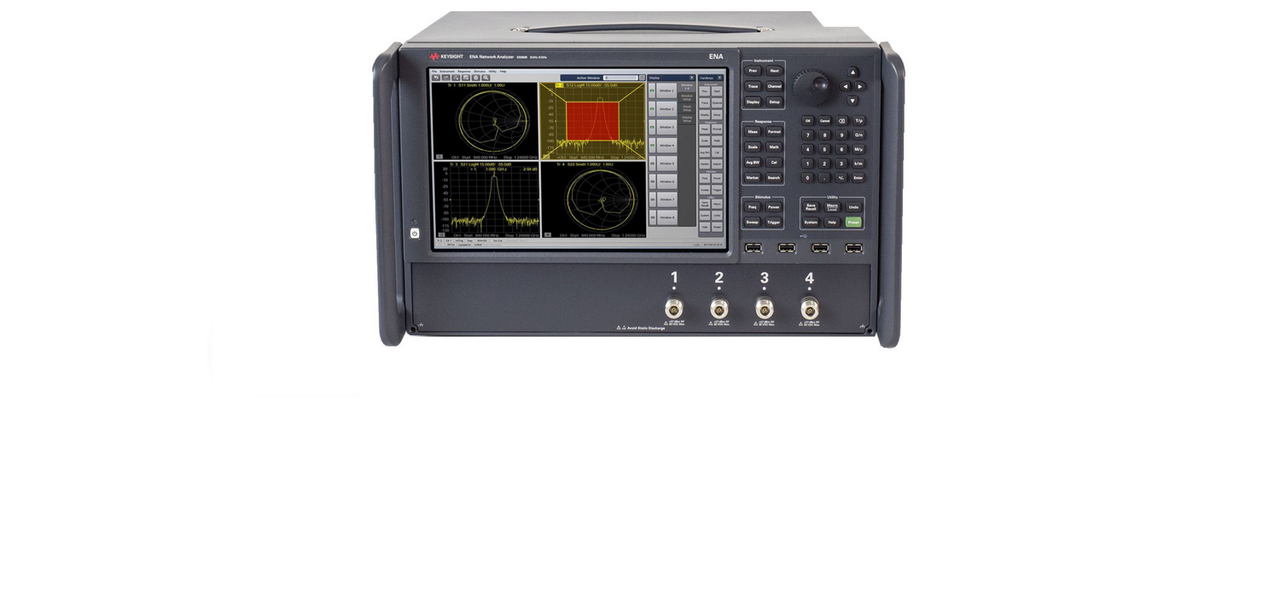

Brand new generation of Keysight ENA E5080B network analyzers

Keysight Technologies, Inc. launched the next generation of network analyzers which deliver reliability and repeatability with best-in-class dynamic range, trace noise and temperature stability, as well as a wide range of software applications, enabling engineers to consistently achieve comprehensive device characterization. Keysight's new E5080B network analyzers deliver next generation features and performance in benchtop form factor. These new analyzers combine built-in pulse generators and modulators, spectrum analysis, and time domain analysis in a single instrument to save time by fully characterizing modern devices without the need for additional test hardware.

Wide range of available models:

• 2 or 4 ports
• Frequency range from 9 kHz to 4.5 / 6.5 / 9/14/20 GHz
• Internal bias tees

Top RF parameters:

• 140 dB dynamic range
• Trace noise only 0.0015 dBrms
• Measurement speed of 401 points trace 2.2 ms
• Stability 0.005 dB / deg C

Fully integrated solution for complex measurement:

• Spectrum analyzer on each port
• Internal pulse generators
• Two internal DC power supplies for DUT
• Input / output ports for DC measurements

Measuring applications for characterization of both passive and active components:

• Automatic fixture removal
• Time domain measurement
• TDR
• Basic pulsed-RF measurements
• Noise figure measurement
• Scalar and vector mixer/converter measurements
• Gain compression measurements
• Measurement of intermodulation distortion
• Material measurements and many others

User friendly:

• Intuitive 12.1“ multi-touch user interface
• Depth only 334 mm

Detailed information about the new Keysight ENA E5080B analyzers can be found HERE.
